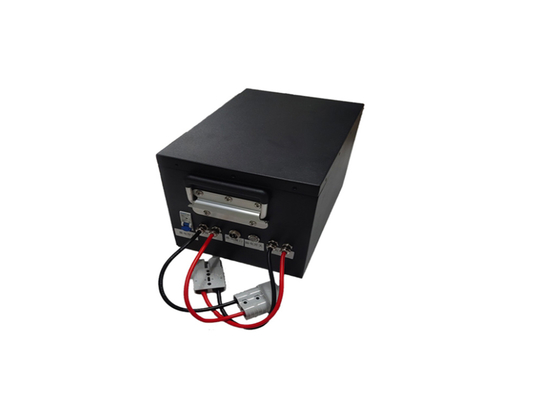

25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity

  • 25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity
Место происхождения КИТАЙ
Фирменное наименование JHOTA
Количество мин заказа 5
Цена Договоренно
Упаковывая детали Картон
Время доставки 20-30 дней
Условия оплаты T/T.
Поставка способности 500 шт

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Вичат: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Название продукта Батарея базовой станции связи Номинальное напряжение 25,6 В.
Номинальная способность 75AH Цикл жизни 2000 раз
Гарантия 5 лет
Выделить

25.6v 75ah LiFePo4 battery for AGVs

,

lithium battery for automated guided vehicles

,

LiFePo4 battery with high load capacity
Оставьте сообщение
Характер продукции
25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum
Runtime and Load Capacity
Specification
Item Parameter
Nominal Voltage 25.6V
Rated Capacity Nominal Capacity: 75Ah
Charging Voltage 29.2V
Charging Method Constant Current / Constant Voltage
Discharge Cut-off Voltage 18.4V
Rated Charging Current ≤30A
Maximum Continuous Charging Current ≤50A
Internal Resistance <100mΩ
Rated Discharge Current ≤30A
Maximum Continuous Discharge Current ≤50A (not exceeding 1 hour)
Overcharge Protection Voltage 3.65±0.05V (adjustable)
Over-discharge Protection Voltage 2.3±0.01V (adjustable)
Overcurrent Protection Discharge overcurrent value: ≥200A
Short Circuit Protection

Condition: External circuit short, Recovery:

Disconnect short circuit
Operating Temperature Range Charge: 0~55°C, Discharge: -20~55°C
Storage Temperature Range Less than 7 days: 20~65°C
Weight Approx. 15kg
Dimensions Customizable
Product Description:
25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity 0
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity 1
Application:

1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy

for continuous movement and lifting.

2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).

3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with

minimal charging downtime.

25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity 2
