25.6v 30ah Industrial LiFePo4 AGV Battery Pack Designed for Long Duty Cycles and Heavy Cargo Applications

  • 25.6v 30ah Industrial LiFePo4 AGV Battery Pack Designed for Long Duty Cycles and Heavy Cargo Applications
Место происхождения КИТАЙ
Фирменное наименование JHOTA
Количество мин заказа 5
Цена Договоренно
Упаковывая детали Картон
Время доставки 20-30 дней
Условия оплаты T/T.
Поставка способности 500 шт

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Вичат: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Название продукта Батарея базовой станции связи Номинальное напряжение 25,6 В.
Номинальная способность 30AH Цикл жизни 2000 раз
Гарантия 5 лет
Выделить

25.6v 30ah AGV LiFePo4 battery

,

industrial AGV battery for heavy cargo

,

long duty cycle LiFePo4 battery pack
Оставьте сообщение
Характер продукции
25.6v 30ah Industrial LiFePo4 AGV Battery Pack Designed for Long Duty Cycles
and Heavy Cargo Applications
Specification
Item Parameter
Nominal Voltage 25.6V
Rated Capacity Nominal Capacity: 30Ah
Charging Voltage 29.2V
Charging Method Constant Current / Constant Voltage
Discharge Cut-off Voltage 18.4V
Rated Charging Current ≤15A
Maximum Continuous Charging Current ≤30A
Internal Resistance <100mΩ
Rated Discharge Current ≤30A
Maximum Continuous Discharge Current ≤100A (not exceeding 1 hour)
Overcharge Protection Voltage 3.65±0.05V (adjustable)
Over-discharge Protection Voltage 2.3±0.01V (adjustable)
Overcurrent Protection Discharge overcurrent value: ≥80A
Short Circuit Protection

Condition: External circuit short, Recovery:

Disconnect short circuit
Operating Temperature Range Charge: 0~55°C, Discharge: -20~55°C
Storage Temperature Range Less than 7 days: 20~65°C
Weight Approx. 12kg
Dimensions Customizable
Product Description:

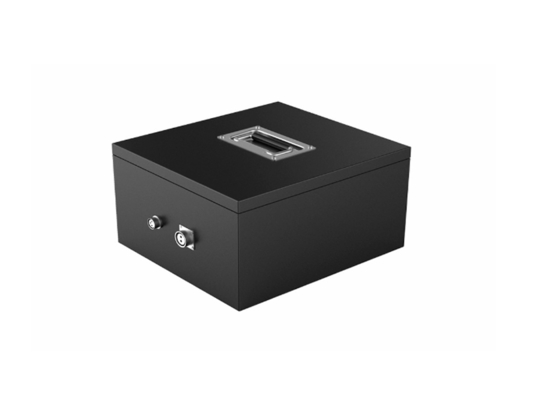

25.6v 30ah Industrial LiFePo4 AGV Battery Pack Designed for Long Duty Cycles and Heavy Cargo Applications 0
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
25.6v 30ah Industrial LiFePo4 AGV Battery Pack Designed for Long Duty Cycles and Heavy Cargo Applications 1
Application:

1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy

for continuous movement and lifting.

2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).

3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with

minimal charging downtime.

25.6v 30ah Industrial LiFePo4 AGV Battery Pack Designed for Long Duty Cycles and Heavy Cargo Applications 2

Our Factory
25.6v 30ah Industrial LiFePo4 AGV Battery Pack Designed for Long Duty Cycles and Heavy Cargo Applications 3
Packing&Shipping
25.6v 30ah Industrial LiFePo4 AGV Battery Pack Designed for Long Duty Cycles and Heavy Cargo Applications 4
