72v 45ah LiFePo4 Battery for AGVs Ensuring Long Shifts with Heavy Loads

  • 72v 45ah LiFePo4 Battery for AGVs Ensuring Long Shifts with Heavy Loads
Место происхождения КИТАЙ
Фирменное наименование JHOTA
Количество мин заказа 5
Цена Договоренно
Упаковывая детали Картон
Время доставки 20-30 дней
Условия оплаты T/T.
Поставка способности 500 шт

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Вичат: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Название продукта Батарея базовой станции связи Номинальное напряжение 72 В.
Номинальная способность 45Ah Цикл жизни 2000 раз
Гарантия 5 лет
Выделить

72v 45ah LiFePo4 battery for AGVs

,

electric vehicle lithium battery with warranty

,

AGV battery for heavy loads
Оставьте сообщение
Характер продукции
72v 45ah LiFePo4 Battery for AGVs Ensuring Long Shifts with Heavy Loads
Specification
Item Parameter
Nominal Voltage 73.6V
Rated Capacity Nominal Capacity: 45Ah,Minimum Capacity: 44Ah
Charging Voltage 29.2V
Charging Method Constant Current / Constant Voltage
Discharge Cut-off Voltage 18.4V
Rated Charging Current ≤20A
Maximum Continuous Charging Current ≤50A
Internal Resistance <100mΩ
Rated Discharge Current ≤20A
Maximum Continuous Discharge Current ≤50A (not exceeding 1 hour)
Overcharge Protection Voltage 3.65±0.05V (adjustable)
Over-discharge Protection Voltage 2.3±0.01V (adjustable)
Overcurrent Protection Discharge overcurrent value: ≥150A
Short Circuit Protection

Condition: External circuit short, Recovery:

Disconnect short circuit
Operating Temperature Range Charge: 0~55°C, Discharge: -20~55°C
Storage Temperature Range Less than 7 days: 20~65°C
Weight Approx. 23kg
Dimensions Customizable
Product Description:

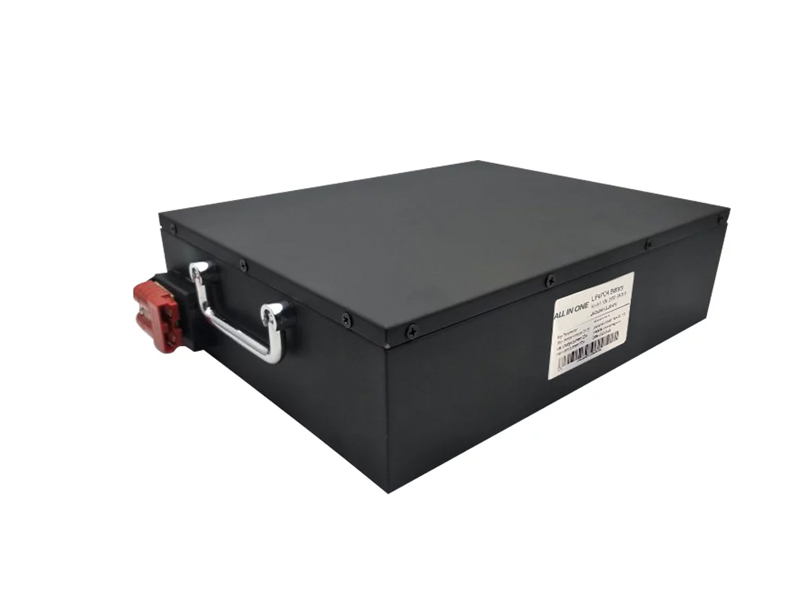

72v 45ah LiFePo4 Battery for AGVs Ensuring Long Shifts with Heavy Loads 0
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
72v 45ah LiFePo4 Battery for AGVs Ensuring Long Shifts with Heavy Loads 1
Application:

1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy

for continuous movement and lifting.

2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).

3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with

minimal charging downtime.

72v 45ah LiFePo4 Battery for AGVs Ensuring Long Shifts with Heavy Loads 2

Our Factory
72v 45ah LiFePo4 Battery for AGVs Ensuring Long Shifts with Heavy Loads 3
Packing&Shipping
72v 45ah LiFePo4 Battery for AGVs Ensuring Long Shifts with Heavy Loads 4
